EW1
Features
- 1 x 18″ (455 mm) Woofer
- High dynamic SPL
- Low harmonic distortion
- High temperature stabilized 3” copper voice coil
- High excursion limits
- Deep bass

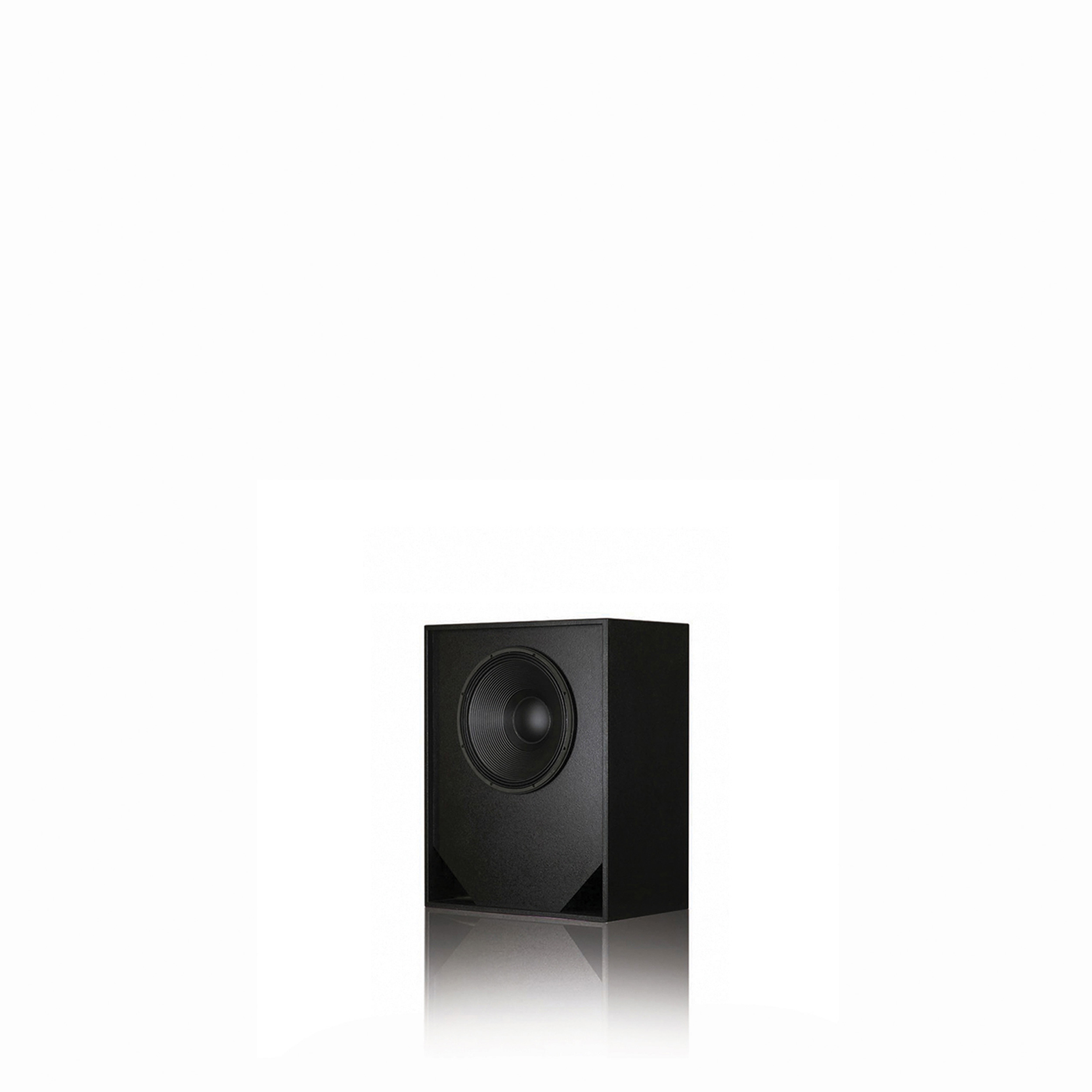

The Pulz EW1 Subwoofer has been specifically developed for playback of digital audio soundtracks in cinema theatres where high quality audio playback needs to be achieved at a moderate budget. The system is capable of high power output, low distortion and smooth response to the lowest audible frequencies.
The 18” driver is loaded in a direct radiator bass-reflex enclosure. It has a 3” high temperature stabilized voice coil for high power handling and reduced power compression. The specially treated cone is weather resistant and can withstand extremely severe climatic conditions. The large port area reduces turbulence at full power output and low frequencies.
The EW1 is recommended where long term reliability is of prime importance.
| Frequency Response | 30Hz to 200Hz |
| Power Rating | 600W AES, 2400W peak |
| Sensitivity | 98dB @ 1W/1m |
| Maximum SPL | 125.5dB continuous, 131.5dB peak @ 1m |
| Nominal Impedance | 8 Ω |
| Transducers | 1 x 18″ (455 mm) long throw weather resistant woofer |
| Finish | Black impact resistant structured coating |
| Connector | Push type binding post, cable upto 4 mm diameter |
| Enclosure | 18 mm MDF direct radiator vented enclosure |
| Subsonic Filter | 30Hz high pass 18dB/octave slope |
| Dimensions (H x W x D) | 915 mm x 725 mm x 455 mm (36” x 28.5” x 18”) |
| Net Weight | 55 kg (121 lb) |
| Packed Weight | 58 kg (128 lb) |
