EDW2
Features
- 2 x 18” (450 mm) woofer
- High dynamic SPL
- Low harmonic distortion
- High temperature stabilized 4” copper voice coil
- High excursion limits
- Deep bass

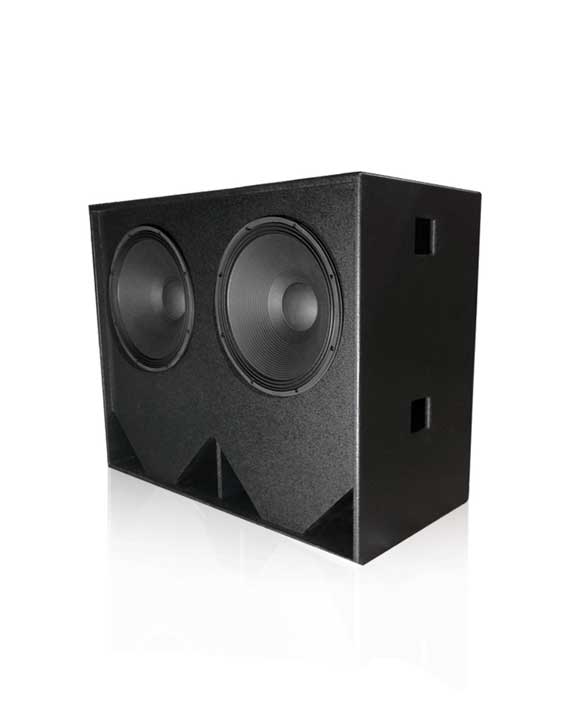

The Pulz EDW2 Subwoofer has been specifically developed for playback of digital audio soundtracks in cinema theatres where high quality audio playback needs to be achieved at a moderate budget. The system is capable of high power output, low distortion and smooth response to the lowest audible frequencies.
An dual 18” drivers are loaded in a direct radiator bass-reflex enclosure. The drivers comprise of a 4” high temperature stabilized voice coil for high power handling and reduced power compression. The specially treated cone is weather resistant and can withstand extremely severe climatic conditions. The large port area reduces turbulence at full power output and low frequencies.
The EDW2 is recommended where no compromise low frequency effects and long term reliability are desired.
| Frequency Response | 30Hz to 200Hz |
| Power Rating | 2000W AES, 8000W peak |
| Sensitivity | 101dB @ 1W/1m |
| Maximum SPL | 134dB continuous, 140dB peak @ 1m |
| Nominal Impedance | 4Ω |
| Transducers | 2 x 18” (450 mm) long throw weather resistant woofer |
| Finish | Black impact resistant structured coating |
| Connector | Push type binding post, cable upto 4 mm diameter |
| Enclosure | 18 mm MDF direct radiator vented enclosure |
| Subsonic Filter | 30Hz high pass 18dB/octave slope |
| Dimensions (H x W x D) | 915 mm x 1154 mm x 555 mm (36” x 45.5” x 21.9”) |
| Net Weight | 120 kg (265 lb) |
| Packed Weight | 126 kg (278 lb) |
