EM1
Features
- 15″ (380 mm) Low Frequency Driver
- 1.75″ (44 mm) High Frequency Driver
- High dynamic SPL
- High system efficiency
- Low harmonic distortion
- Exceptional transient response
- Unique pattern control
- Smooth and extended frequency response
- Compact size
- Ideal for small size auditoria

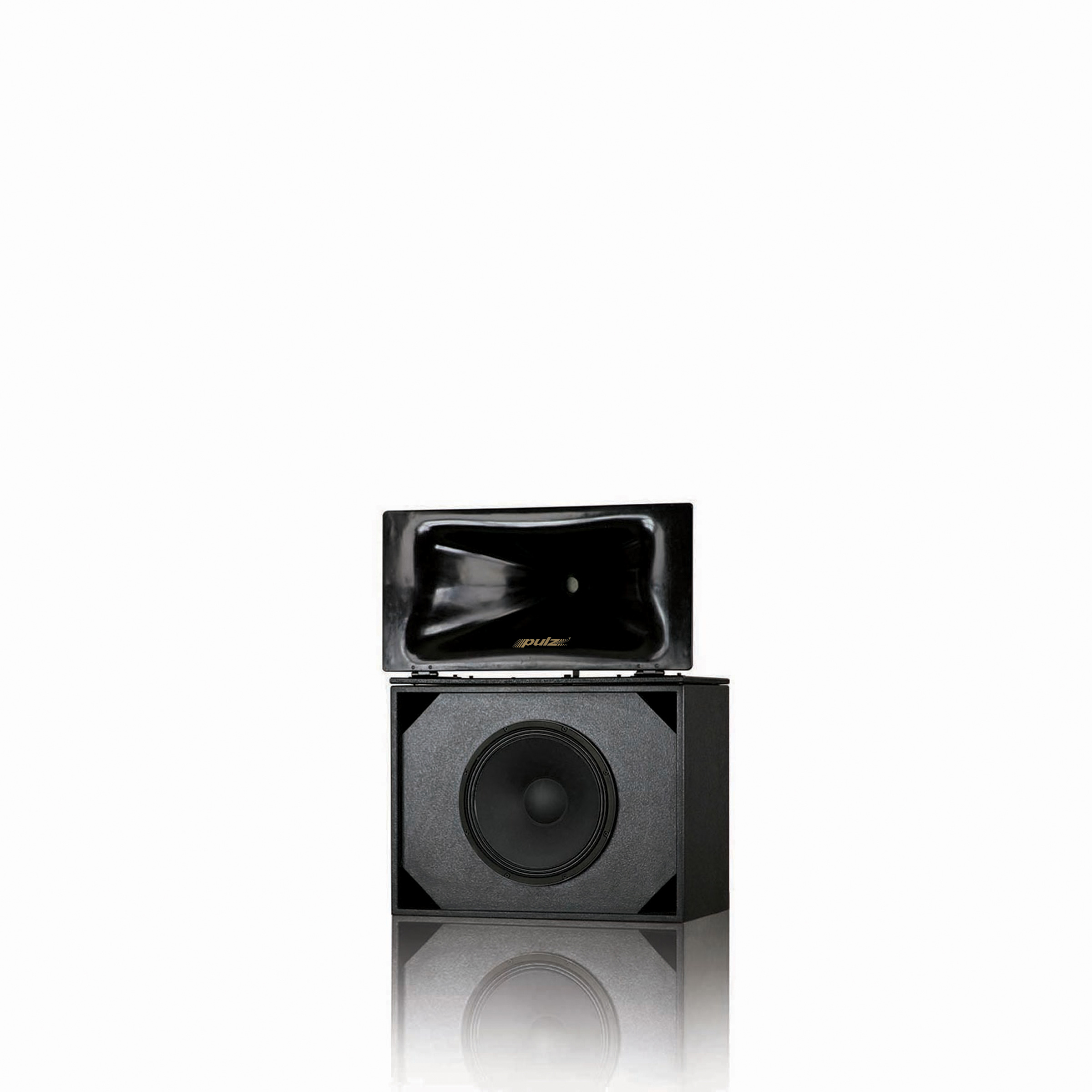

The Pulz EM1 2-Way Cinema Screen Speaker is a compact and cost effective solution for small cinemas. The system consists of a single 15” low frequency high efficiency driver working in conjunction with a 1.75″ voice coil high frequency compression driver. The 90º horizontal and -30º to +20º vertical pattern control horn exhibits uniform HF response throughout the cinema auditorium.
The LF driver is loaded in a direct radiator bass-reflex enclosure. The vented enclosure design is chosen to extend low frequency performance while limiting cone excursion. This also reduces distortion and driver strain. The large port area reduces air turbulence at full power output and low frequencies.
Very fine adjustments can be done by adjusting the tilt of the horn through our unique adjustable steel bracket. The vented woofer box design gives great low frequency extension with compact size.
| Frequency Response | 45Hz to 20kHz |
| Power Rating | LF: 500W AES, 2000W peak; HF: 80W AES, 450W peak |
| Sensitivity | LF: 98dB @ 1W/1m; HF: 113dB @ 1W/1m |
| Maximum SPL | LF: 125dB continuous, 131dB peak @ 1m; MF/HF: 132dB continuous, 138dB peak @ 1m |
| Nominal Impedance | LF: 8Ω; HF: 8Ω |
| Recommended Amplifier | 300W to 800W @ 8Ω |
| Low Frequency Driver | 15″ (380 mm) weather resistant long excursion woofer |
| High Frequency Driver | 1.75″ (44 mm) voice coil compression driver |
| Crossover | 1kHz Active |
| Finish | Black impact resistant structured coating |
| Connector | Push type binding post, cable upto 4 mm diameter |
| Enclosure | 18 mm MDF direct radiator vented enclosure |
| Horn | 90˚ horizontal, -30˚ + 20˚ vertical |
| Dimensions (H x W x D) | 959 mm x 760 mm x 424 mm (37.8″ x 30″ x 16.7″) |
| Net Weight | 50 kg (110 lb) |
| Packed Weight | 60 kg (132 lb) |
