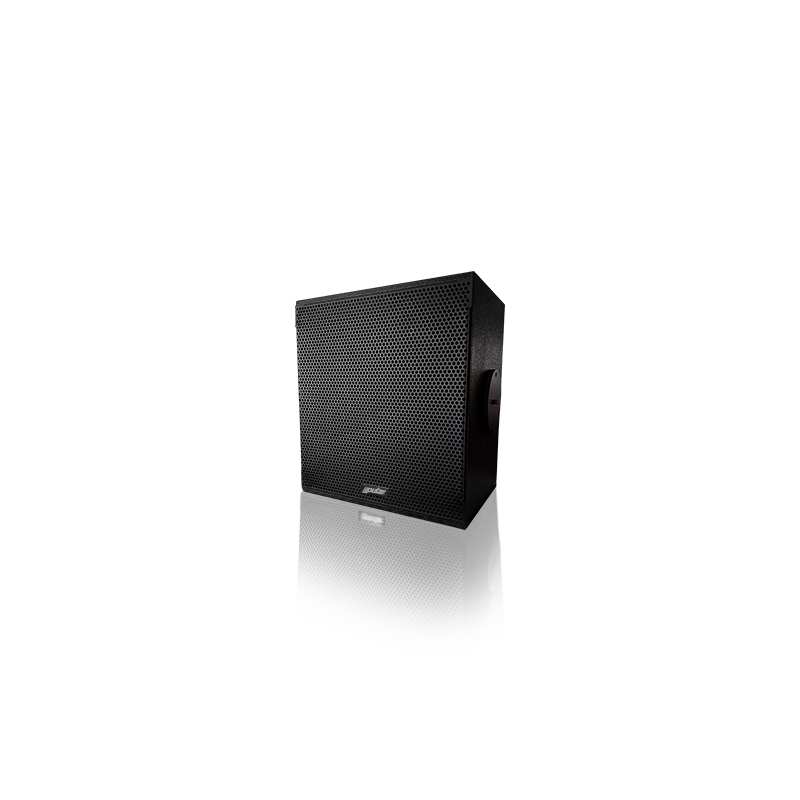

IsoWave 12X
Features
- 12″ (300 mm) Low Frequency Driver
- 1.75” (44 mm) (380 mm) High Frequency Driver
- Coherent wavefront
- Point source reproduction
- Coaxial design with waveguide loading
- 90° x 60° MDF horn
- High dynamic SPL
- Low harmonic distortion
- Enhanced sonic accuracy
- Smooth and extended frequency response
The IsoWave 12X 2-Way Speaker System design emphasizes on consistency and linearity of on and off axis response providing more spatially consistent sound compared to designs utilizing offset drivers. The enhanced sonic accuracy of IsoWave speaker system is primarily
possible due to the carefully integrated coaxial solution.
The IsoWave 12X incorporates a 12″ extremely low distortion Low-Mid driver in conjunction with a coaxially mounted 1.75″ voice coil high frequency compression driver. The High frequency driver is loaded with a 90° horizontal X 60° vertical waveguide. This sophisticated waveguide also loads the 12″ low frequency driver. Together the system forms a high sensitivity, high SPL motor system with exceptional linearity and directivity control.
The system is further loaded with a 90° horizontal X 60° vertical dispersion bass reflex enclosure made of MDF. The horn can be vertically tilted from 0° to 30° in increments of 5° to optimally achieve front to back coverage of the auditorium.
The resultant frequency response is uniform and easy to equalize when required. DSP settings are provided for optimum performance.
| Frequency Response | 50Hz to 20kHz |
| Power Rating | LF: 500W AES, 2000W peak; HF: 80W AES, 450W peak |
| Sensitivity | LF: 98dB @ 1W/1m; HF: 113dB @ 1W/1m |
| Maximum SPL | 125dB continuous, 131dB peak @ 1m |
| Nominal Impedance | LF: 8Ω; HF: 16Ω |
| Recommended Amplifier | 800W to 1300W @ 4Ω |
| Low Frequency Driver | 12” (300 mm) Low-Mid driver with coaxial entry |
| High Frequency Driver | 1.75” (44 mm) voice coil compression driver mounted coaxially |
| Crossover | 1.2kHz Active or Passive |
| Dispersion | 90° horizontal x 60° vertical |
| Finish | Black impact resistant structured coating |
| Connector | Push type binding post, cable upto 4 mm diameter |
| Enclosure | 18 mm MDF direct radiator vented enclosure |
| Dimensions (H x W x D) | 573 mm x 510 mm x 360 mm (22.5” x 20” x 14.2”) |
| Net Weight | 25 kg (55 lb) |
| Packed Weight | 27 kg (59 lb) |
