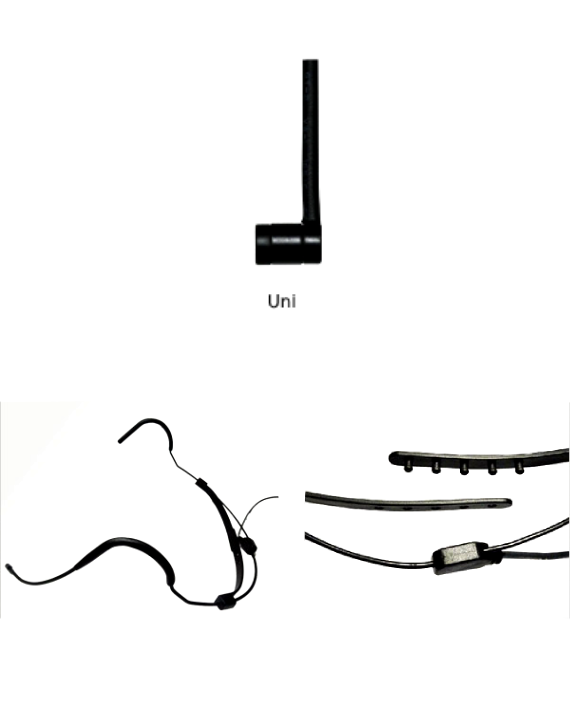

THS218-U
Features
- Unidirectional microphone
- Cardiod pattern
- Wide audio frequency range
- Robust built quality for outdoor application like sports
- Good Signal to noise ratio
- Clean and accurate sound reproduction
- Light weight
- Adjustable belt to different head sizes
- Waterproof design
- Sweatproof
THS218-U is a sports head worn microphone with a unidirectional pattern characteristics. THS218-U produces a smooth frequency response over a wide audio band frequency range. Its waterproof design, sweatproof design and comfortable wearing with adjustable belt design makes it a great choice for applications such as sports, aerobics and other outdoor speech acitivities. Windscreen is provided along with the microphone to minimize the pickup of unwanted sounds due to air movement around the capsule. With additional accessories this micrphone can be connected to Shure, AKG, Sennheiser or a 3.5mm jack wireless transmitters
| Polar Pattern | Uni- Directional |
| Frequency Response | 70~16kHz (Uni) |
| Impedance | 1,500 Ω ± 30% (at 1kHz) (Uni) |
| Sensitivity | -62±3 dB (0 dB = 1 V/microbar) (Uni) |
| S/N Ratio | 58 dB (Uni) |
| SPL | 100 dB (Uni) |
| Operating Voltage | 1~10 V DC (RL : 2K2 Ω) |
| Colour | Skin - Black – Purple |
| Connector | TA3F - TA4F – Mini Jack -3pin Lemo - Φ3.5 Plug |
| Dimensions | |
| Capsule Housing | Φ7.2 x 8 mm (Uni) |
| Boom | Φ3.8 x 103 mm (Uni) |
| Wire | Φ1.5 mm x 1.2 meter |
| Accessory | Windscreen - Clip |
