CX8
Features
- 8” (200 mm) Low Frequency Driver
- 1” (25 mm) High Frequency Driver
- High performance coaxial driver
- Wavefront coherency at all frequencies
- 90° conical dispersion
- Full range of mounting options
- High SPL

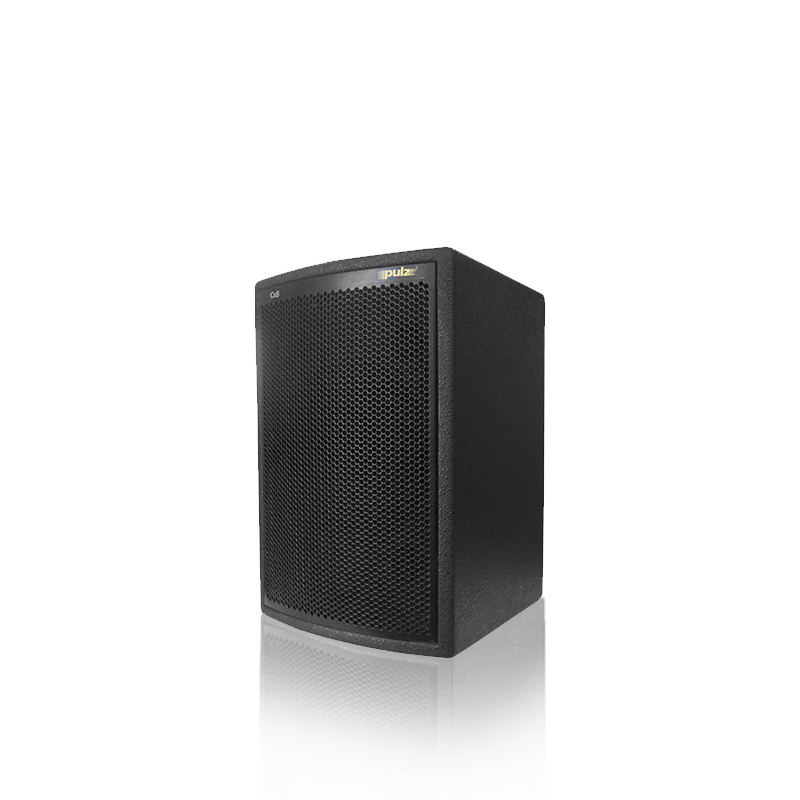

The Pulz CX8 loudspeaker is a versatile system that is designed for high quality distributed sound reinforcement. Using true point source coaxial technology, the CX8 features advanced components in flexible, multipurpose format that is suitable for either touring or fixed installations. The CX8 is a passive 2-Way loudspeaker containing a 1″ voice coil compression driver assembled in a coaxial configuration along with a 8″ Low-Mid frequency driver providing a conical 90° dispersion.
Further advantages of the coaxial approach include: single point source radiation, total wavefront coherency at all frequencies and superimposed LF/HF dispersion characteristics that are free of polar lobing effects typical of traditional horn and woofer combinations. The net result is natural, studio monitor level sound quality that is ideal for proximity use.
The new MVC (Multi Vent Convection) technology, allows the CX8 to handle its maximum power capacity in any working position.
Medium power touring, installed PA for clubs, A/V theatre, high quality stage monitoring etc. are some of the field applications of the CX8. The design and additional mounting options for the CX8, provide this speaker a simple and easy installation. One can put it on the floor, install it on a stand, or fly it. As a main FOH (Front of House) the CX8 is meant for vocal applications, stage monitor or distributed sound. Combined with Pulz subwoofers, the CX8 allows to create compact and powerful systems suitable for all indoor and outdoor configurations.
The enclosure comprises a 45° side for stage monitor applications and includes single 35 mm built-in stand fittings and two wood integrated handles.
Frequency Response | 70Hz to 20kHz |
Power Rating | 120W AES, 480W peak |
Sensitivity | 93.8dB @ 1W/1m |
Maximum SPL | 114.5dB continuous, 120.5dB peak @1m |
Nominal Impedance | 8Ω |
Low Frequency Driver | 8” (200 mm) Low-Mid driver with coaxial entry |
High Frequency Driver | 1” (25 mm) voice coil compression driver mounted coaxially |
Nominal Directivity | 90° conical |
Recommended filter | 60Hz 18dB/octave Butterworth high pass filter; 20kHz 18dB/octave Butterworth low pass filter |
Crossover | 2.6kHz Passive, Air core inductors, MKP capacitors, wirewound resistors |
Finish | Black impact resistant structured coating |
Connector | 2 x Speakon |
Enclosure | Bass reflex type with MVC technology, 15 mm Birch Plywood |
Grill | Acoustically transparent perforated steel with foam backing |
Dimensions (H x W x D) | 417 mm x 288 mm x 277 mm (16.5” x 11.4” x 11”) |
Net Weight | 13 kg (28 lb) |
Packed Weight | 14 kg (31 lb) |
