IW110
Features
- 10” (250 mm) woofer
- High power and high sensitivity
- Only 12” (300 mm) depth for in wall installation
- Extended frequency response down to 35Hz
- Tighter vertical control by multiple box array
- Professional construction
- High quality components

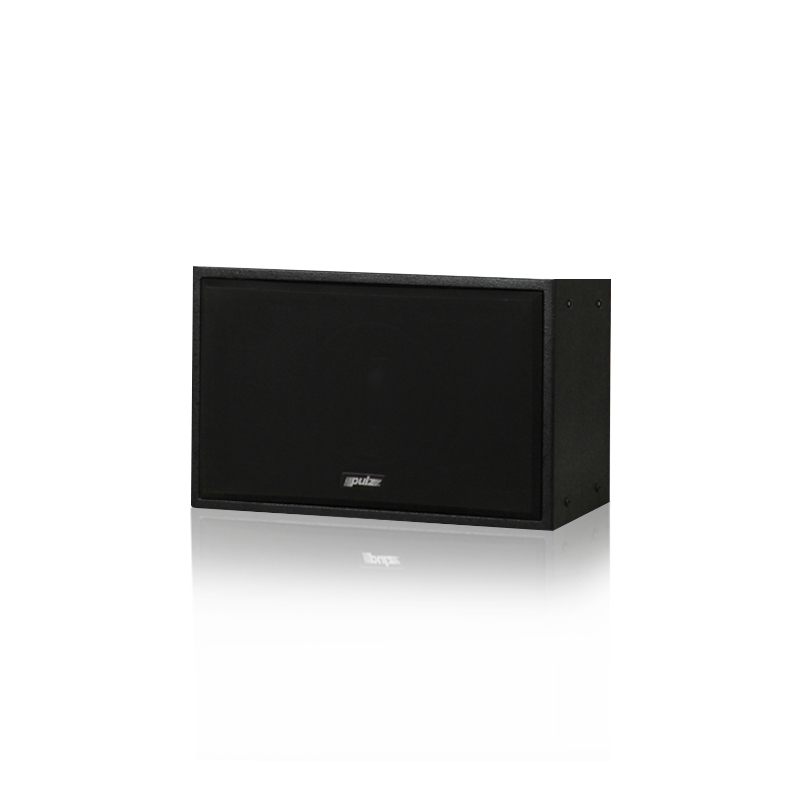

IW110 is designed to be an inwall or onwall subwoofer system where powerful low frequency extension and ease of integration is the prime criteria. The system is powered with a single long throw 10” woofers in a rectangular shaped shallow enclosure.
The enclosure is built with high quality MDF solidly braced and damped for optimum loading and minimum resonances. Fabric or metal grills are provided as per the application.
IW110 can be stacked to create a line source and extend the near field effect. The application possibilities are only limited by the capability of the system integrator.
IW110 is only 12” (300 mm) deep, hence ideally suited for inwall installations. The high power and sensitivity of IW110 combined with low frequency extension down to 35Hz makes the box a formidable tool for critical installations.
| Frequency Response | 38Hz to 500Hz |
| Power Rating | 250W AES, 1000W peak |
| Sensitivity | 92.5dB @ 1W/1m |
| Maximum SPL | 113.5dB continuous, 119.5dB peak @ 1m |
| Nominal Impedance | 8Ω |
| Transducers | 10” (250 mm) long throw weather resistant woofer |
| Recommended Filter | 30Hz 18dB/octave Butterworth High pass filter 20kHz 12dB/octave Butterworth Low pass filter |
| Finish | Black impact resistant structured coating |
| Connector | Push type binding post, cable upto 4 mm diameter |
| Enclosure | 18 mm MDF direct radiator vented enclosure |
| Grill | Acoustically transparent black woven fabric/MS perforated grill with foam backing |
| Dimensions (H x W x D) | 375 mm x 586 mm x 316 mm (14.8” x 23.1” x 12.5”) |
| Net Weight | 19.5 kg (43 lb) |
| Packed Weight | 21 kg (46 lb) |
