IW210
Features
- 2 x 10” (250 mm) woofer
- High power and high sensitivity
- 100° vertical control
- Only 12” (300 mm) depth for in wall installation
- Extended frequency response down to 35Hz
- Tighter vertical control by multiple box array
- Professional construction
- High quality components

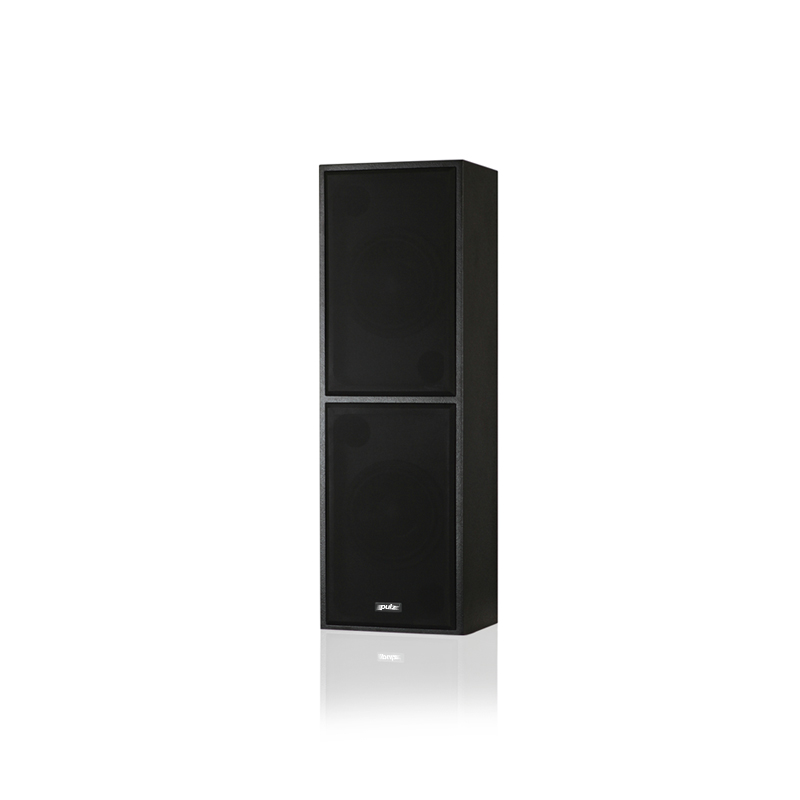

IW210 is designed to be an inwall or onwall subwoofer system where powerful low frequency extension and ease of integration is the prime criteria. The system is powered with two long throw 10” woofers in a column shaped shallow enclosure. Each driver is individually loaded and tuned to prevent anomalies caused due to uneven ageing or malfunctioning.
The enclosure is built with high quality MDF solidly braced and damped for optimum loading and minimum resonances. Fabric or metal grills are provided as per the application.
IW210 can be stacked to create a line source and extend the near field effect. The application possibilities are only limited by the capability of the system integrator.
IW210 is only 12” (300 mm) deep, hence ideally suited for inwall installations. The high power and sensitivity of IW210 combined with low frequency extension down to 35Hz makes the box a formidable tool for critical installations.
| Frequency Response | 38Hz to 500Hz |
| Power Rating | 500W AES, 2000W peak |
| Sensitivity | 95.5dB @ 1W/1m |
| Maximum SPL | 122dB continuous, 128dB peak @ 1m |
| Nominal Impedance | 4Ω |
| Dispersion | 180° horizontal, 100° vertical @ 400Hz |
| Transducers | 2 x 10” (250 mm) long throw weather resistant woofer |
| Finish | Black impact resistant structured coating |
| Connector | Push type binding post, cable upto 4 mm diameter |
| Enclosure | 18 mm MDF direct radiator vented enclosure |
| Grill | Acoustically transparent black woven fabric |
| Dimensions (H x W x D) | 1154 mm x 375 mm x 310 mm (45.4” x 14.8” x 12.2”) |
| Net Weight | 36 kg (79 lb) |
| Packed Weight | 40 kg (88 lb) |
